Hydraulic Piston SPGO Seal / Glyd Ring Compact Rod Piston Seals

Ask Lasest Price
Brand Name :	YOUCHANG/ZHIPAN
Model Number :	SPGO
Certification :	UDEM
Price :	Negotiable price
Payment Terms :	L/C,T/T,Western Union
Supply Ability :	100000 pcs per week
Delivery Time :	2-3 work days

Add to Cart

Product Details
Company Profile

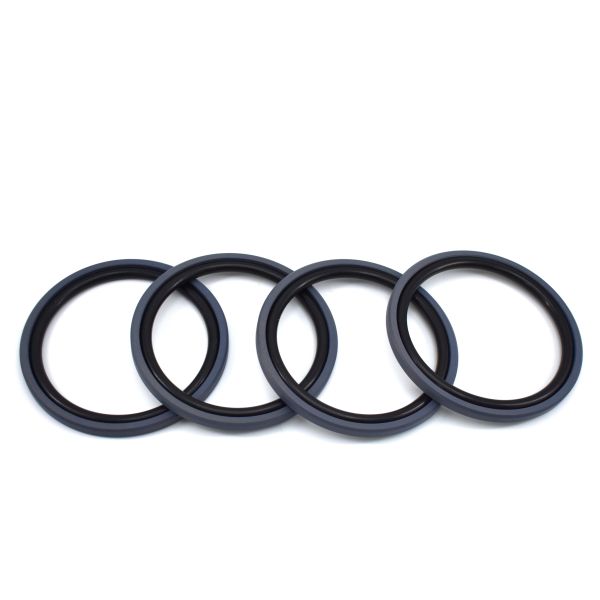

Hydraulic Piston SPGO Seal / Glyd Ring Compact Rod Piston Seals

Hydraulic Piston SPGO Seal/Glyd Ring Compact Rod Piston Seals

Description:

SPGO is a low friction piston seal consisting of PTFE+Bronze seal ring and rubber o-ring used for two-way piston seal of Hydraulic cylinder, to seal in fluid, thus preventing the flow of fluid across the piston, allowing pressure to build up on one side of the piston.

SPGO Data:

Material	Power-transmission fluid	Temperature	Speed	Pressure	Max. Gap F
PTFE+bronze	Mineral Oil(NBR)	-30 – +110	≦ 15 m/s	160 bar	F ≦ 0.6 mm
	Mineral Oil(FPM)	-30 – +200		250 bar	F ≦ 0.4 mm
				400 abr	F ≦ 0.2 mm

Product Display

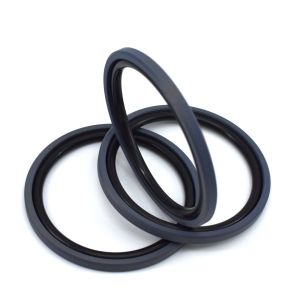

Hydraulic Piston SPGO Seal / Glyd Ring Compact Rod Piston Seals

Dimensions

d	D	h	φd	φD	H	C
14	20	3	14	20	3.2	2
19	25	3	19	25	3.2	2
21.5	30	3.8	21.5	30	4	3.5
23	31.5		23	31.5
23.5	32		23.5	32
26.5	35		26.5	35
27	35.5		27	35.5
31.5	40		31.5	40
36.5	45		36.5	45
41.5	50		41.5	50		4
44.5	53		44.5	53
46.5	55		46.5	55
47.5	56		47.5	56
51.5	60		51.5	60
49	63	6.3	49	63	6.5
51	65		51	65
56	70		56	70		5
57	71		57	71
61	75		61	75
66	80		66	80
71	85		71	85
76	90		76	90
81	95		81	95
86	100		86	100
91	105		91	105
96	110		96	110
98	112		98	112		6.5
101	115		101	115
106	120		106	120
111	125		111	125
116	130		116	130
121	135		121	135
126	140		126	140
136	150		136	150
146	160		146	160
150	170	9.8	150	170	10
160	180		160	180
170	190		170	190
180	200		180	200
190	210		190	210
200	220		200	220
204	224		204	224
210	230		210	230
220	240		220	240
230	250		230	250
240	260		240	260		7.5
250	270		250	270
260	280		260	280
270	290		270	290
280	300		280	300
290	310		290	310
300	320		300	320
320	340		320	340
330	350		330	350
340	360		340	360
355	375		355	375
360	380		360	380
380	400		380	400
