| Brand Name : | ZHIPAN |
| Price : | Negotiable price |
| Model Number : | KDAS |
| Certification : | UDEM |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000pcs per week |
| Delivery Time : | 5-8 work days |
KDAS Piston Seal, the combination seal ring is a double acting piston seal ring, two retainers, and two wear-resistant rings. There is a real sealing element in the middle; There are setting a retaining ring and a wear-resistant ring on each side. Besides, the retaining ring prevents the sealing ring from being squeezed into the clearance. The sealing ring in the middle is a dentate sealing ring, which can play a good role in static and movement. In addition, the wear ring ACTS as a guide to the piston in the cylinder and bears the radial force.
| Item | Specifications |
| Products name | KDAS/DAS |
| Material | POM / TPU polymer or NBR |
| Color | Black +Blue |
| Sizes | 20~250mm |
| Pressure | 0~35MPa |
| Temperature | -30℃ +120℃ |
| Speed | 0.5m/s |
| Medium | petroleum base hydraulic oil,nonflammable hydraulic oil, environmental protection hydraulic oil |

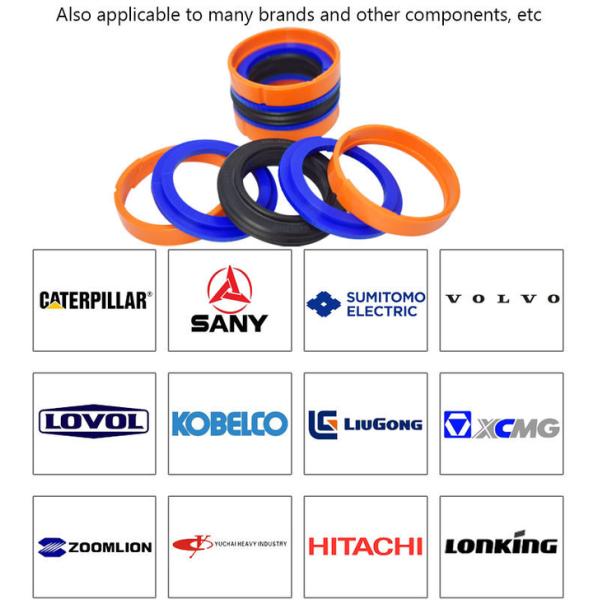

Product Display
|
|
