| Brand Name : | YOUCHANG/ZHIPAN |
| Price : | Negotiable price |
| Model Number : | IDI |
| Certification : | UDEM |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100000 pcs per week |
| Delivery Time : | 2-3 work days |
IDI Seal 40*50*6 U Cup Hydraulic Piston U-Ring Polyurethane PU Rod Seal
Product Description
1)PU material display higher mechanical strength,high abrasion,wear and extrusion resistance,high pressure load capacity,as well as a high tear and elongation at break resistance. Also have good flexibility and very good ageing and ozone resistance.
2)The IDI- type is a special combination seal ring for pistons. It consists of a PTFE sealing ring and a rectangular rubber ring for the two-way sealing of the piston of the hydraulic cylinder. PTFE sealing ring has excellent friction coefficient, abrasion resistance, extrusion resistance, high-temperature resistance, and corrosion resistance.
| Application: | |||||
| Excavator, Loaders, Crawler Tractors, Skid Steer Loader, Wheel Loaders, Swap Dozers, Hydraulic Hammers,Dump Trucks, Mobile Cranes,Lorry Mounted Cranes,Forklifts & Etc | |||||
| Service condition: | |||||
| Reciprocating motion | |||||
| Application limit: | |||||
| Temperature range: -45ºC ~ 110ºC |

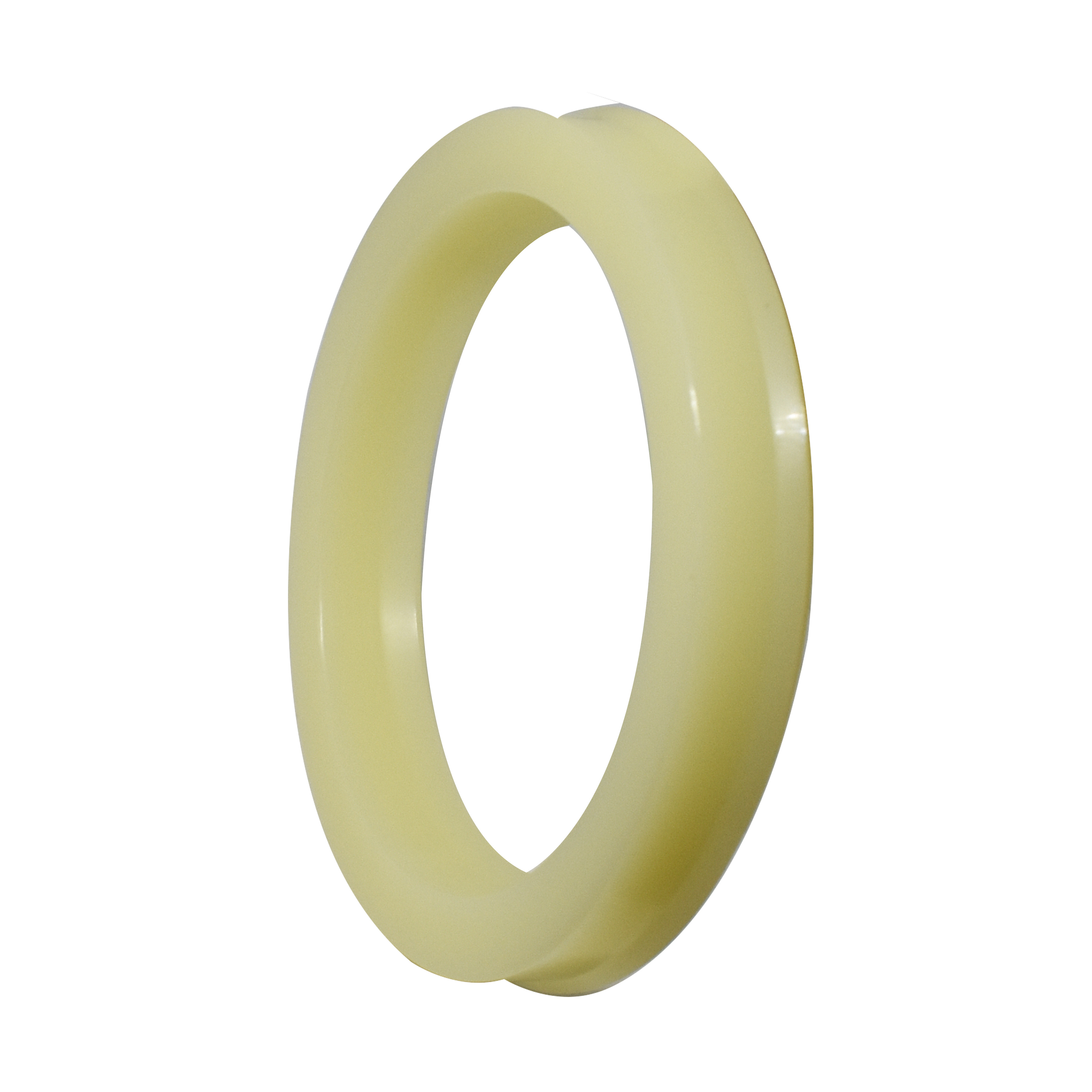

Product Picture
Specification
| d | D | h | Ha | Hb | STANDARD |
| 30 | 40 | 5.8 | 6 | 9 | IDI 30*40*6 |
| 30 | 40 | 6.5 | 7 | 10 | IDI 30*40*7 |
| 32 | 42 | 6.8 | 7.2 | 10.2 | IDI 32*42*7.2 |
| 35 | 45 | 5.8 | 6 | 9 | IDI 35*45*6 |
| 35 | 45 | 6.5 | 7 | 9 | IDI 35*45*7 |
| 36 | 46 | 7.5 | 8 | 10 | IDI 36*46*8 |
| 40 | 48 | 5.8 | 6 | 9 | IDI 40*48*6 |
| 40 | 50 | 5.8 | 6 | 9 | IDI 40*50*6 |
| 40 | 50 | 6.5 | 7 | 10 | IDI 40*50*7 |
| 40 | 50 | 7.5 | 8 | 10 | IDI 40*50*8 |
| 42 | 50 | 5.5 | 5.7 | 8.7 | IDI 42*50*5.7 |
| 42 | 50 | 5.8 | 6 | 9 | IDI 42*50*6 |
| 45 | 55 | 6.5 | 7 | 10 | IDI 45*55*7 |
| 45 | 55 | 7.5 | 8 | 10 | IDI 45*55*8 |
| 50 | 60 | 5.8 | 6 | 9 | IDI 50*60*6 |
| 50 | 60 | 7.8 | 8 | 10 | IDI 50*60*8 |
| 50 | 63 | 9.5 | 10 | 13 | IDI 50*63*10 |
| 50 | 65 | 8.5 | 9 | 12 | IDI 50*65*9 |
| 55 | 65 | 5.8 | 6 | 9 | IDI 55*65*6 |
| 55 | 65 | 7.8 | 8 | 10 | IDI 55*65*8 |
| 55 | 68 | 9.5 | 10 | 13 | IDI 55*68*10 |
| 55 | 70 | 8.5 | 9 | 12 | IDI 55*70*9 |
| 60 | 70 | 5.8 | 6 | 9 | IDI 60*70*6 |
| 60 | 70 | 7.8 | 8 | 10 | IDI 60*70*8 |
| 60 | 73 | 9.5 | 10 | 13 | IDI 60*73*10 |
| 60 | 75 | 8.5 | 9 | 12 | IDI 60*75*9 |
| 65 | 75 | 5.8 | 6 | 9 | IDI 60*75*6 |
| 65 | 75 | 7.8 | 8 | 10 | IDI 65*75*8 |
| 65 | 78 | 9.5 | 10 | 13 | IDI 65*78*10 |
| 65 | 80 | 8.5 | 9 | 12 | IDI 65*80*9 |
| 70 | 80 | 7.8 | 8 | 10 | IDI 70*80*8 |
| 70 | 83 | 9.5 | 10 | 13 | IDI 70*83*10 |
| 70 | 85 | 8.5 | 9 | 12 | IDI 70*85*9 |
| 70 | 90 | 11.5 | 12 | 15 | IDI 70*90*12 |
| 75 | 85 | 5.8 | 6 | 9 | IDI 75*85*6 |
| 75 | 85 | 7.8 | 8 | 10 | IDI 75*85*8 |
| 75 | 88 | 9.5 | 10 | 13 | IDI 75*88*10 |
| 75 | 90 | 8.5 | 9 | 12 | IDI 75*90*9 |
| 80 | 90 | 7.8 | 8 | 10 | IDI 80*90*8 |
| 80 | 93 | 9.5 | 10 | 13 | IDI 80*93*10 |
| 80 | 95 | 8.5 | 9 | 12 | IDI 80*95*9 |
| 80 | 95 | 9.5 | 10 | 13 | IDI 80*95*10 |
| 85 | 100 | 8.5 | 9 | 12 | IDI 85*100*9 |
| 85 | 100 | 9.5 | 10 | 13 | IDI 85*100*10 |
| 85 | 105 | 11.5 | 12 | 15 | IDI 85*105*12 |
| 90 | 105 | 8.5 | 9 | 12 | IDI 90*105*9 |
| 90 | 105 | 9.5 | 10 | 13 | IDI 90*105*10 |
| 90 | 110 | 11.5 | 12 | 15 | IDI 90*110*12 |
| 95 | 110 | 8.5 | 9 | 12 | IDI 95*110*9 |
| 95 | 110 | 9.5 | 10 | 13 | IDI 95*110*10 |
| 95 | 115 | 11.5 | 12 | 15 | IDI 95*115*12 |
| 100 | 115 | 8.5 | 9 | 12 | IDI 100*115*9 |
| 100 | 115 | 9.5 | 10 | 13 | IDI 100*115*10 |
| 100 | 120 | 11.5 | 12 | 15 | IDI 100*120*12 |
| 105 | 120 | 8.5 | 9 | 12 | IDI 105*120*9 |
| 105 | 120 | 9.5 | 10 | 13 | IDI 105*120*10 |
| 105 | 125 | 11.5 | 12 | 15 | IDI 105*125*12 |
| 105 | 125 | 14.5 | 15 | 18 | IDI 105*125*15 |
| 110 | 125 | 8.5 | 9 | 12 | IDI 110*125*9 |
| 110 | 130 | 11.5 | 12 | 15 | IDI 110*130*12 |
| 110 | 130 | 12.5 | 13 | 16 | IDI 110*130*13 |
| 115 | 130 | 8.5 | 9 | 12 | IDI 115*130*9 |
| 115 | 135 | 11.5 | 12 | 15 | IDI 115*135*12 |
| 115 | 135 | 15.5 | 16 | 19 | IDI 115*135*16 |
| 117 | 132 | 9.5 | 10 | 13 | IDI 117*132*10 |
| 120 | 135 | 8.5 | 9 | 12 | IDI 120*135*9 |
| 120 | 140 | 11.5 | 12 | 15 | IDI 120*140*12 |
| 120 | 140 | 14.5 | 15 | 18 | IDI 120*140*15 |
| 130 | 145 | 8.5 | 9 | 12 | IDI 130*145*9 |
| 130 | 150 | 15 | 16 | 19 | IDI 130*150*16 |
| 135 | 155 | 15 | 16 | 19 | IDI 135*155*16 |
| 140 | 150 | 5.8 | 6 | 8 | IDI 140*150*6 |
| 140 | 155 | 8.5 | 9 | 12 | IDI 140*155*9 |
| 140 | 160 | 11.5 | 12 | 15 | IDI 140*160*12 |
| 140 | 160 | 12.5 | 13 | 16 | IDI 140*160*13 |
| 150 | 160 | 5.8 | 6 | 8 | IDI 150*160*6 |
| 150 | 165 | 8.5 | 9 | 12 | IDI 150*165*9 |
| 150 | 170 | 11.5 | 12 | 15 | IDI 150*170*12 |
| 155 | 165 | 5.8 | 6 | 8 | IDI 155*165*6 |
| 155 | 170 | 8.5 | 9 | 12 | IDI 155*170*9 |
| 155 | 175 | 11.5 | 12 | 15 | IDI 155*175*12 |
| 160 | 175 | 8.5 | 9 | 12 | IDI 160*175*9 |
| 160 | 180 | 11.5 | 12 | 15 | IDI 160*180*12 |
| 165 | 180 | 8.5 | 9 | 12 | IDI 165*180*9 |
| 170 | 185 | 8.5 | 9 | 12 | IDI 170*185*9 |
| 170 | 190 | 11.5 | 12 | 15 | IDI 170*190*12 |
| 180 | 200 | 11.5 | 12 | 15 | IDI 180*200*12 |
| 180 | 205 | 15 | 16 | 19 | IDI 180*205*16 |
| 190 | 200 | 10.5 | 11 | 14 | IDI 190*200*11 |
|
|
