    Bronze Filled BRT Nylon Back Up Ring PTFE Hydraulic U Cup Seals

    Ask Lasest Price
    Brand Name : YOUCHANG/ZHIPAN
    Price : Negotiable price
    Model Number : BRT
    Certification : UDEM
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000000 pcs per week
    Delivery Time : 2-3 work days
    • Product Details
    • Company Profile

    Bronze Filled BRT Nylon Back Up Ring PTFE Hydraulic U Cup Seals

    PTFE Bronze Filled BRT Nylon Back-up Ring PTFE U Cup Seal

    Description
    Back-up Rings are protective and supporting elements with no sealing function. Made from extrusion-resistant materials ,and they
    usually have a rectangular cross section and are installed in a groove with an elastomer O-Ring. Due to their tight fit in the housing, Back-up Rings prevent extrusion of the pressurized elastomer sealing element into the clearance or extrusion gap.Using Back-up Rings allows O-Rings to be utilized in higher pressure applications, where larger extrusion gaps are required and where there are reciprocating or rotating movements. They also compensate for large temperature fluctuations.

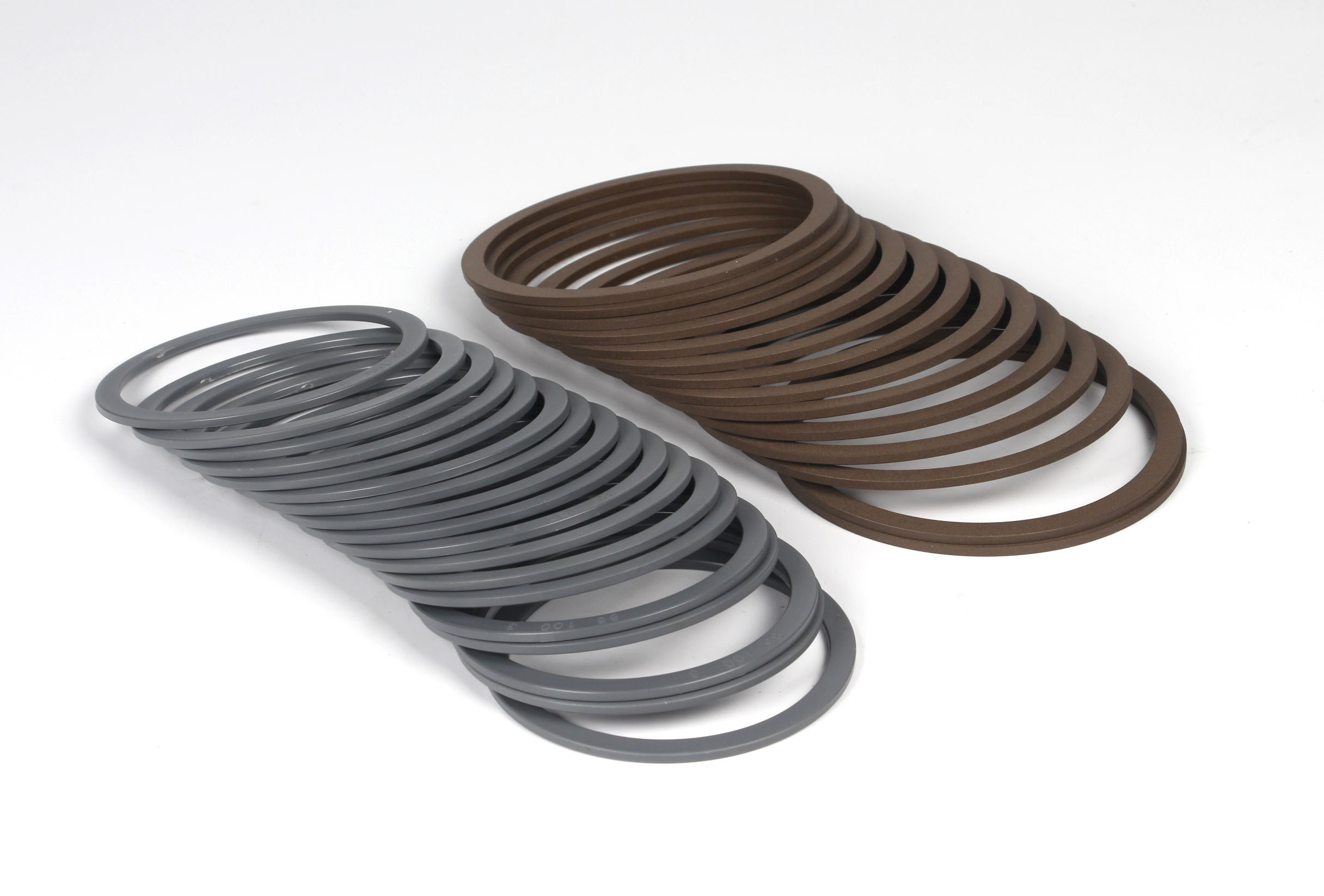

    Porduct Display
    Bronze Filled BRT Nylon Back Up Ring PTFE Hydraulic U Cup Seals
    Dimensions
    SIZE
    SIZE
    100*115*3
    55*70*3
    100*120*3
    55*70*3
    105*120*3
    55*75*3
    105*125*3
    60*70*3
    110*125*3
    60*73*3
    110*130*3
    60*75*3
    120*140*3
    65*75*3
    125*140*3
    65*78*3
    130*150*3
    65*80*3
    140*160*3
    70*80*3
    145*160*3
    70*83*3
    160*175*3
    70*85*3
    165*180*3
    70*85*3
    30*34*3
    70*90*3
    30*45*3
    75*85*3
    35*45*3
    75*88*3
    35*45*3
    75*90*3
    35*50*3
    75*95*3
    40*50*3
    80*100*3
    40*55*3
    80*90*3
    40*60*3
    80*93*3
    45*55*3
    80*95*3
    45*60*3
    85*100*3
    50*60*3
    85*105*3
    50*63*3
    90*105*3
    50*65*3
    90*110*3
    55*65*3
    95*110*3
    55*68*3
    95*115*3


    Characteristics
    - Chemical corrosion resistance such as acid
    - High temperature resistance
    - Self-lubricating
    - High wear resistance
    - Non-sticky, non-absorbing
    - Size stable
